To implement chunked multiple file uploads with AJAX in Oracle APEX, you'll need a storage method for the uploaded files. You can either insert the files directly into a database table or use a temporary collection. In this demo, we utilize the APEX_COLLECTION to store the uploaded files in an AFTER HEADER PL/SQL process.

Steps to Implement Chunked File Upload with AJAX:

Create a Blank Page:

Page Name: Upload Multiple File

Storage for Uploaded Files:

You can insert the uploaded files into a table or store them temporarily in a collection. For this demo, we'll use the UPLOADED_FILES collection in an AFTER HEADER PL/SQL process.

New Region:
- Name: Uploaded Files
- Type: Interactive Report
- SQL Query:

SELECT seq_id, 'UPLOADED_FILES' AS collection_name, c001, c002, DBMS_LOB.getlength(blob001) AS file_size, DBMS_LOB.getlength(blob001) AS blob001, seq_id AS delete_file

FROM apex_collections
WHERE collection_name = 'UPLOADED_FILES'

Template: Standard
Static ID: report

File Browse Page Item:

Name: P2_FILE_UPLOAD

Type: Upload file

Allow multiple files: Yes

Custom Attributes: multiple (to allow selection of multiple files)

Create a New Page Item:

Name: P2_DELETE_FILE_ID

Create an Upload Button:

Button Name: UPLOAD_FILE

Create a PL/SQL Process:

Trigger: After Header
Name: UPLOADED_FILES

PL/SQL Code:

DECLARE
lco_collection_name CONSTANT apex_collections.collection_name%TYPE := 'UPLOADED_FILES';
BEGIN
IF NOT apex_collection.collection_exists(lco_collection_name) THEN
apex_collection.create_collection(p_collection_name => lco_collection_name);
END IF;
END;

Create Dynamic Action for the Upload Button:

Name: Collection
Event: Click
Selection Type: Button (UPLOAD_FILE)
Client-side Condition:
Type: JavaScript Expression
Expression: fileInputElem.files.length != 0
Action: Execute JavaScript Code

spinner = new Spinner(spinOptions).spin(spinTargetElem);

fileIndex = 0;

uploadFile(fileIndex);

Upload File AJAX Callback Process:

Create: AJAX Callback Process

Name: UPLOAD_FILE
PL/SQL Code:

DECLARE
lco_collection_name CONSTANT apex_collections.collection_name%TYPE := 'UPLOADED_FILES';
l_blob BLOB;
l_filename VARCHAR2(200);
l_mime_type VARCHAR2(200);
l_token VARCHAR2(32000);
BEGIN
l_filename := APEX_APPLICATION.g_x01;
l_mime_type := NVL(APEX_APPLICATION.g_x02, 'application/octet-stream');
DBMS_LOB.createtemporary(l_blob, FALSE, DBMS_LOB.session);
FOR i IN 1 .. APEX_APPLICATION.g_f01.COUNT LOOP
l_token := wwv_flow.g_f01(i);
IF LENGTH(l_token) > 0 THEN
DBMS_LOB.append(dest_lob => l_blob, src_lob => to_blob(UTL_ENCODE.base64_decode(UTL_RAW.cast_to_raw(l_token))));
END IF;
END LOOP;
IF DBMS_LOB.getlength(l_blob) IS NOT NULL THEN
apex_collection.add_member(p_collection_name => lco_collection_name, p_c001 => l_filename, p_c002 => l_mime_type, p_blob001 => l_blob);
END IF;
apex_json.open_object;
apex_json.write(p_name => 'result', p_value => 'success');
apex_json.close_object;
EXCEPTION
WHEN OTHERS THEN
apex_json.open_object;
apex_json.write(p_name => 'result', p_value => 'fail');
apex_json.close_object;
END;

Download and Upload JS File:

Download the JavaScript file for handling the spinner and upload logic.

After downloading, upload it to Static Application Files under Shared Components.

Page Level JavaScript File URLs Reference: #APP_FILES#spin.min.js

Copy the provided JavaScript and paste it between Function and Global Variable Declaration on the page.

var fileInputElem = document.getElementById('P2_FILE_UPLOAD');

var fileIndex = 0;

function clob2Array(clob, size, array) {

var loopCount = Math.floor(clob.length / size) + 1;

for (var i = 0; i < loopCount; i++) {

array.push(clob.slice(size * i, size * (i + 1)));

}

return array;

}

function binaryArray2base64(int8Array) {

var data = "";

var bytes = new Uint8Array(int8Array);

var length = bytes.byteLength;

for (var i = 0; i < length; i++) {

data += String.fromCharCode(bytes[i]);

}

return btoa(data);

}

function uploadFile(pFileIndex) {

var file = fileInputElem.files[pFileIndex];

var reader = new FileReader();

reader.onload = (function(pFile) {

return function(e) {

if (pFile) {

var base64 = binaryArray2base64(e.target.result);

var f01Array = [];

f01Array = clob2Array(base64, 30000, f01Array);

apex.server.process(

'UPLOAD_FILE',

{

x01: file.name,

x02: file.type,

f01: f01Array

{

dataType: 'json',

success: function(data) {

if (data.result === 'success') {

fileIndex++;

if (fileIndex < fileInputElem.files.length) {

uploadFile(fileIndex);

} else {

spinner.stop();

fileInputElem.value = '';

$('#report').trigger('apexrefresh');

}

} else {

alert('Oops! Something went terribly wrong. Please try again or contact your application administrator.');

}

error: function(jqXHR, textStatus, errorThrown) {

spinner.stop();

alert('Error uploading file: ' + textStatus + ' - ' + errorThrown);

}

);

}

})(file);

reader.readAsArrayBuffer(file);

}

var spinner;

var spinTargetElem = document.getElementById('wwvFlowForm');

var spinOptions = {

lines: 13,

length: 28,

width: 14,

radius: 42,

scale: 1,

corners: 1,

color: '#000',

opacity: 0.25,

rotate: 0,

direction: 1,

speed: 1,

trail: 60,

fps: 20,

zIndex: 2e9,

className: 'spinner',

top: '50%',

left: '50%',

shadow: false,

hwaccel: false,

position: 'absolute'

};

File Deletion:

Go to Column: DELETE_FILE

Type: link

Link Target: javascript:$s('P230_DELETE_FILE_ID', #SEQ_ID#);void(0);

Link Text: <span class="t-Icon fa fa-trash delete-irrow" aria-hidden="true">#DELETE_FILE#</span>

Confirmation and Delete Process:
Create Dynamic action under the P2_DELETE_FILE_ID

Paste below code in Execute JavaScript Code

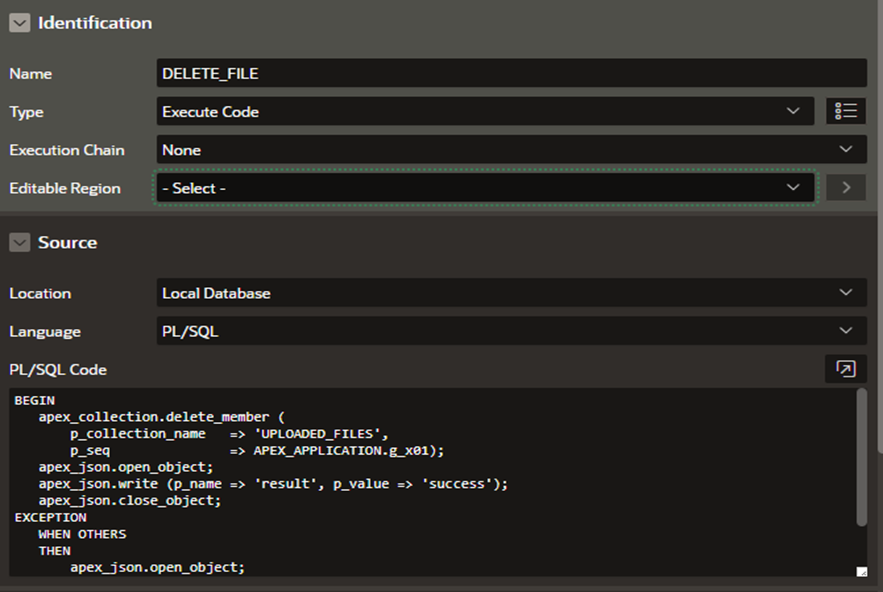

Delete File with AJAX Callback Process:

Create Process in AJAX Callback

Name: DELETE_FILE

Paste the below PL/SQL code

BEGIN

apex_collection.delete_member (

p_collection_name => 'UPLOADED_FILES',

p_seq => APEX_APPLICATION.g_x01);

apex_json.open_object;

apex_json.write (p_name => 'result', p_value => 'success');

apex_json.close_object;

EXCEPTION

WHEN OTHERS

THEN

apex_json.open_object;

apex_json.write (p_name => 'result', p_value => 'fail');

apex_json.close_object;

END;

Save Data to Custom Table:

Create Save Button: Name - SAVE_DATA

Create Process : Name - SAVE_DATA

Process Code:

DECLARE

v_id number;

-- get files data from saved apex_collection

CURSOR l_cur_files IS

SELECT c001 AS filename,

c002 AS mime_type,

d001 AS date_created,

n001 AS file_id,

blob001 AS file_content

FROM apex_collections

WHERE collection_name = 'UPLOADED_FILES';

BEGIN

SELECT nvl(max(id),0)+1

into v_id

FROM upload_multi_files;

-- loop over files cursor

FOR l_rec_files IN l_cur_files

LOOP

-- do whatever processing is required prior to the insert into your own table

INSERT INTO upload_multi_files(id,

mime_type,

tds_file,

upload_by,

upload_date

)

VALUES (v_id,

l_rec_files.mime_type,

l_rec_files.file_content,

:APP_USER,

sysdate

);

v_id := v_id+1;

END LOOP;

-- clear original apex collection (only if exist)

IF apex_collection.collection_exists (

p_collection_name => 'UPLOADED_FILES')
